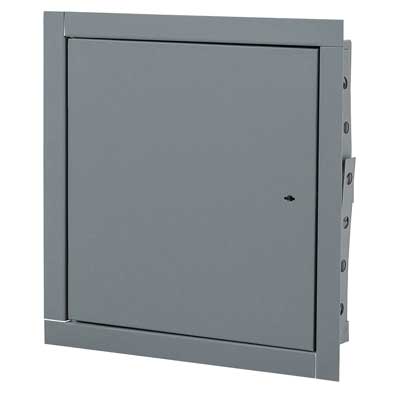

Elmdor FRC Fire Rated Ceiling Access Doors
The door is Fire Rated by Underwriters Laboratories Inc., for 1-1/2 hours, “B” Label, ANSI-UL 10B standard, and CAN/ULC S104 for 2 hours in walls
Fire Rated Ceiling Access Doors
Availabe in Stainless Steel on Quote (click link)
- Model Number : FRC Series
- Brand : Elmdor
- Mount : Ceiling Mount, Wall Mount
- Latching System : Knurl Knob, Cylinder Lock (-CL)
- Compliance : ANSI-UL 10B Standard, CAN/ULC S104 for 2 Hours, UL Classified 1.5 Hour Rating B-Label, Warnock-Hersey 2 Hour Rating for Walls, Warnock-Hersey 3 Hour Rating for Ceilings
- Additional Benefits : Contains Recycled Material
- Material : Galvanized Drywall Bead, Galvannealed Steel, Stainless Steel
Access door frame shall be fabricated from 16 gage galvannealed steel with a prime coat finish and provided with masonry anchors and bolt holes. Access door panel shall be fabricated from 20 gage, galvannealed steel with a prime coat finish. Door shall be filled with 2 inch thick, fire rated insulation, and be welded pan type. Access door shall have spring automatic closer, be self-latching and contain interior latch release. Exterior latching shall be recessed and universal self-latching bolt, operated by either a knurled knob or flush key. Finish shall be a prime coat suitable for painting. Underwriters Laboratories classification shall be: Classified access frame and fire door assembly 1.5 hours, B-Label. Meets ANSI-UL 10B standard, and by Warnock-Hersey for 3 hours in ceilings. For wall installation, the door is Warnock-Hersey rated for 2 hours and CAN/ULC S104 for 2 hours.
