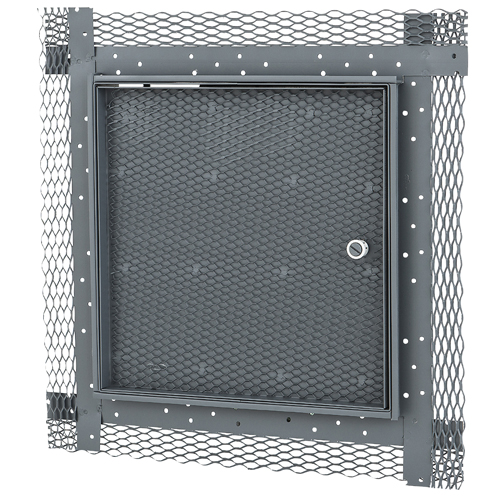

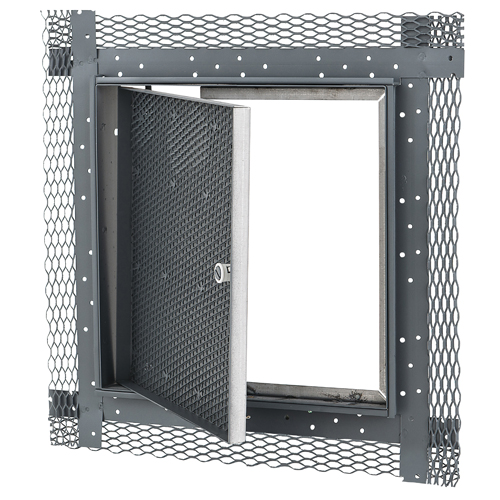

Acoustical Plaster Access Doors
Doors are designed to install flush with the plaster surface assuring an attractive finish. Doors are recessed 5/8" and lined with a metal lath to allow plaster of surrounding surfaces to fill in the face of the door.
Door and frame are fabricated from 16 gage, galvannealed steel with a prime coat finish.
Frame has a 3" wide metal lath on all four sides to key into the plaster.
Concealed Hinge is recessed and operates completely out of sight so that only the metal thickness of the door and frame is visible.
Latch is screwdriver operated.
Finish is a prime coat suitable for painting.
Guide Specification
Provide Elmdor AP Series, Acoustical Plaster Access Doors (specify model number and options). Access door and frame shall be fabricated from 16 gage, galvannealed steel with a prime coat finish.
The door shall be recessed 5/8" and be lined with metal lath. The frame shall have a 3" wide metal lath on all four sides. Hinge shall be concealed type. Latch shall be screwdriver operated. Finish
shall be a prime coat suitable for painting.
